WITS0 to WITSMLTMCONVERTOR LINKS COLLECTOR

Convert all drilling data to WITSMLTM.

Target Application: Land rigs, Offshore rigs, Work-over rigs

Description: Laversab LINKS Collector can convert all drilling data to WITSMLTM.

WITSMLTMversions 1.3.1 & 1.4.1 are currently supported.

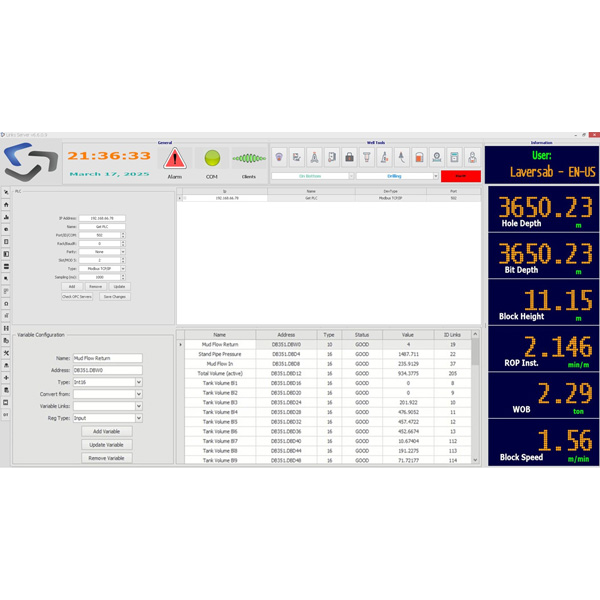

LINKS Collector can handle most data formats – from WITS0 to proprietary formats used by equipment companies. LINKS Collector is a low-footprint software that can run on any rig system. It can also act as a data aggregator by correlating data from multiple rig sources.

DATA
Formats supported: WITS 0, Ascii, Excel, LAS 2.0, LAS 3.0,
WITSML™️ versions 1.3.1 & 1.4.1
Database update 0.25 sec to 5 sec (user configurable)
Depth recording interval: 0.1 ft or 0.1m
Formulas User-defined formulas
Variables: 300+ variables per rig
SYSTEM INFO
Application Type: On-Rig Data Aggregator
Operating System: Windows 7 or later (64-bit)
Framework: .NET
Accessibility: Anytime
Languages: English & Spanish
