WITSMLTM& ETPTMSERVER WITSMLTMStore

Cloud-based WITSMLTMserver

Target Application: Data managerment, Well data storage

Description: WITSMLTM Store is a cloud-based software solution to store and manage data coming from the rig. It can be used with data sources like Laversab LINKS or from other WITSMLTM sources. Any WITSMLTMvisualization tool – including Wellnode – can be used to visualize and monitor data from WITSMLTM Store.

WITSMLTMStore is compatible with WITSMLTMv1.3.1.1 and 1.4.1.1. It also supports ETP v1.1, ensuring high-performance and reliable data delivery. WITSMLTMStore can be used to securely connect and manage data from any well at any time, and it provides assurance that well data will not be lost. Local instances can be installed if required.

Capabilities include:

  • Admin Panel
  • Rig/Well/Wellbore Management
  • Client/User management
  • Data Quality check
  • Data gap Finding and Manual gap filling(CSV/LAS Patching)

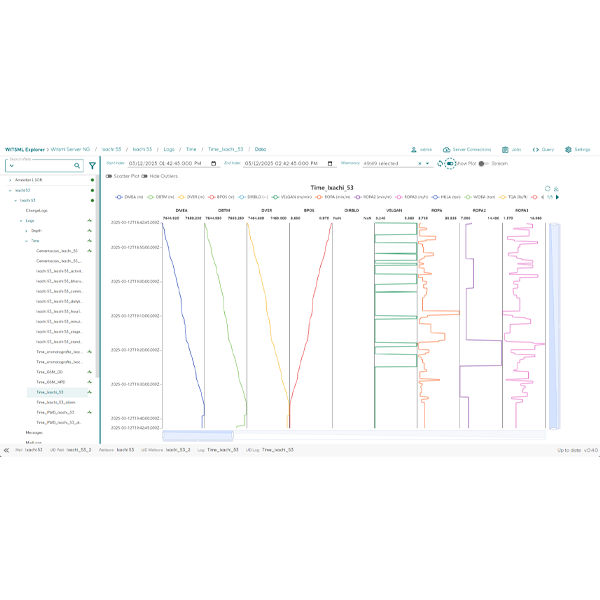

  • UI for verifying Time and Depth Log
  • Rig/Well online/offline Status
  • Client/Consumer online/offline status
REQUEST QUOTE
REQUEST SERVICE

Specifications

APPLICATION INFO
Management Tools: Admin Panel
Rig/Well/Wellbore Management
Client/User Management
Data Quality check
Data Gaps Patching - LAS & CSV
Time & Depth Log check
Server Location: Cloud-based
Physical / On-premise
Well Access: Real-time & Historical
Multiple well access simultaneously
24/7 Availability
Alarms: Visual
Email
Configurable
SYSTEM INFO
Software type: Data Repository Server
Classification: Data Repository Server in Real-Time
Lifecycle status: In Production
Language: English & Spanish
Web browsers supported: Chrome (recommended), Edge,
Firefox, Safari
Device compatibility: Desktop and laptops computers
Protocol compatibility: ETP v1.1, WITSMLTMv1.4.1.1,
WITSML™ v1.3.1.1
