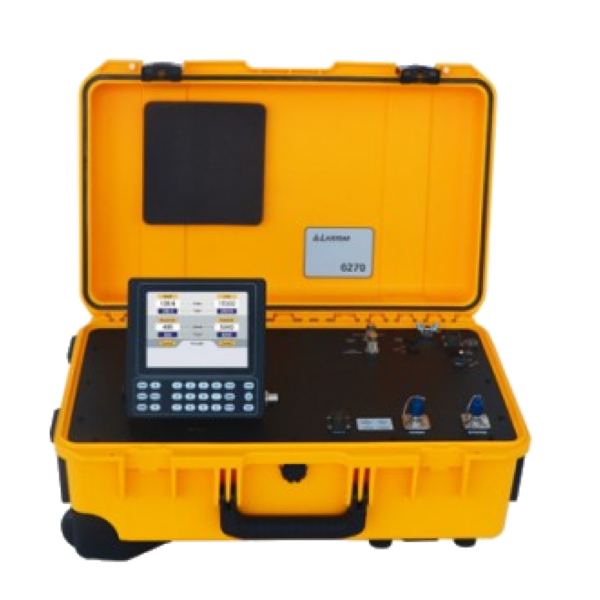

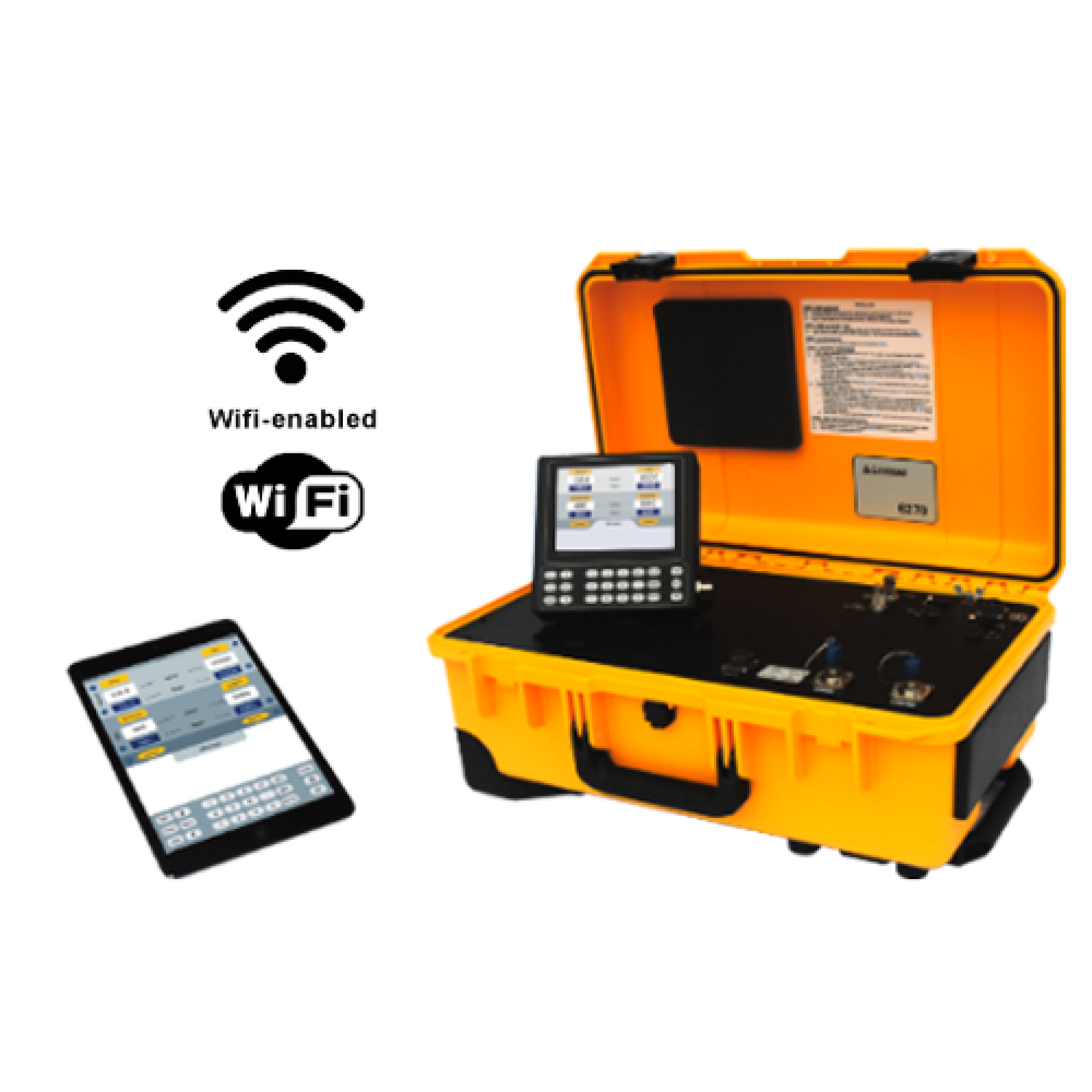

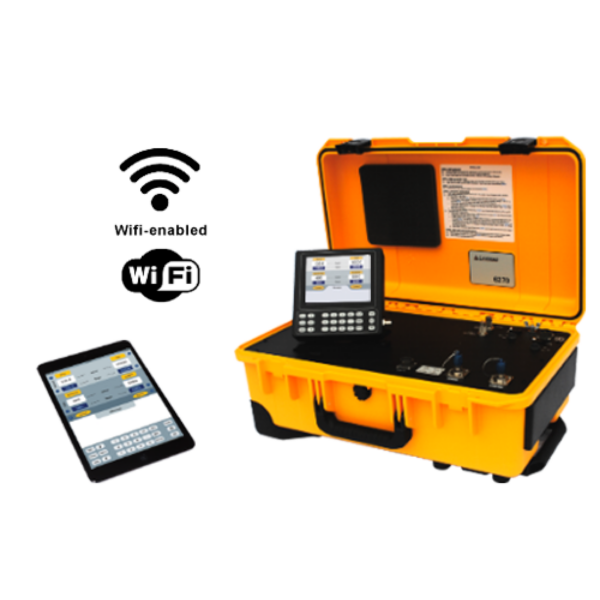

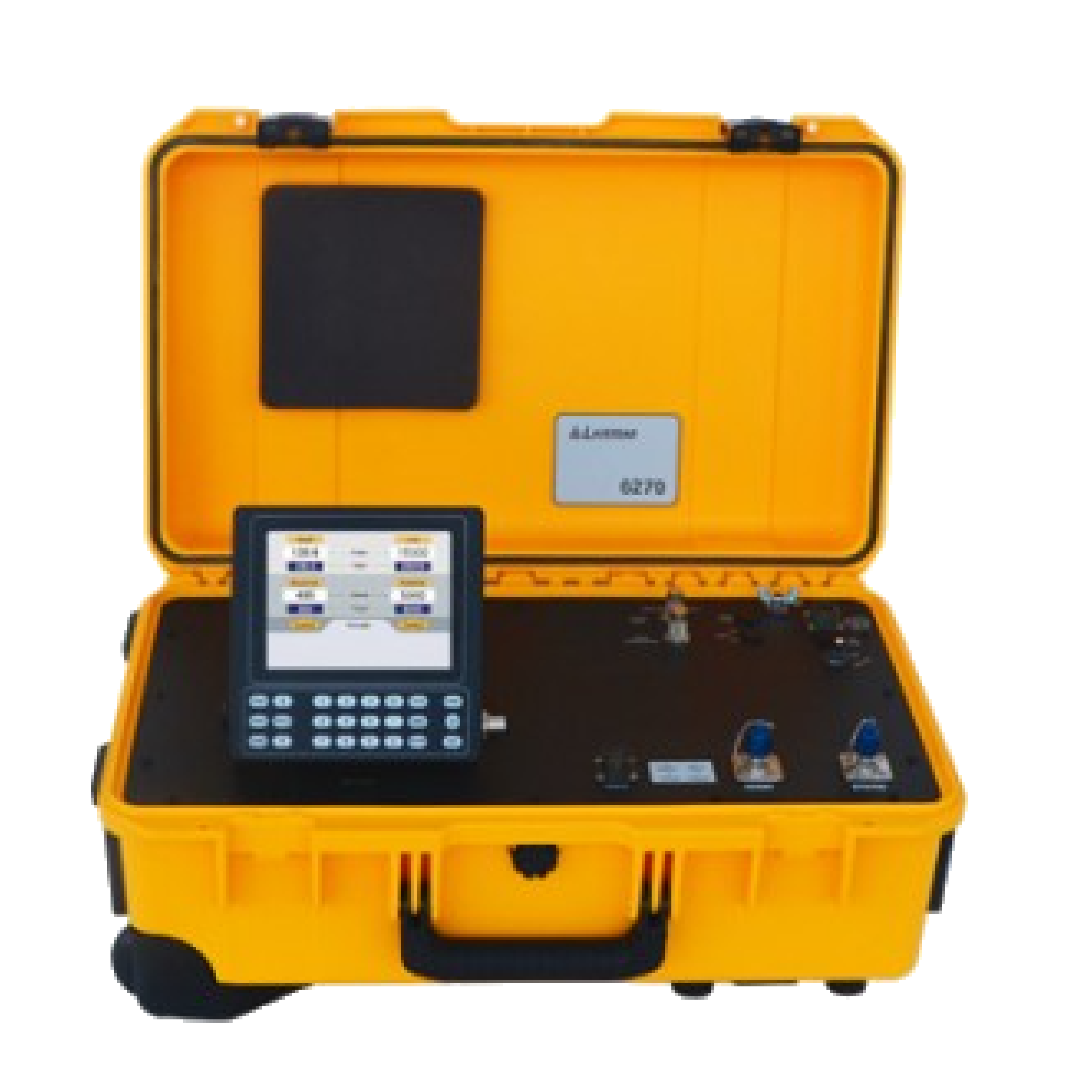

The Model 6270 is a Pitot Static tester designed for RVSM-compliant aircraft capable up to 650 knots. The Model 6270 is used to perform leak-checks and accuracy checks on the Pitot Static systems of RVSM aircraft. Accuracy checks are typically performed on altimeters, airspeed indicators and VSI’s. The Model 6270 is equipped with a Remote unit with large keypad and display, a removable 8-hour battery (optional), wide operating temperature (optional), and “profiles” to accelerate testing. Calibration is required only once a year. The 6270 is WiFi-enabled, which enables wireless remote control using an iPad or other tablets.
The Model 6270 is approved for most business jets.

Share this product!

  • Specification
  • Features
  • Documents

Static Output

Pressure function

Range:

1 to 32 inHg

Resolution:

0.001 inHg

Accuracy:

±0.003 inHg

Units:

inHG, mbar, psi, mmHg, kpa

Pressure Rate

Range:

0 to 30 inHg/min

Resolution:

0.001 inHg/min

Accuracy:

±1% of rate

Units:

pressure-units/min

Altitude function

Range:

-2000 ft. to 60,000 ft.

Resolution:

1 foot

Accuracy:

± 3 ft. @ 0 ft.
± 4 ft. @ 10,000 ft.
± 6 ft. @ 20,000 ft.
± 9 ft. @ 35,000 ft.
± 18 ft. @ 50,000 ft.

Units:

Feet, Meters

Altitude Rate function

Range:

0 ft/min to ±15,000 ft/min

Resolution:

1 ft/min

Accuracy:

±1% of rate of climb

Units:

Feet/min, Meters/sec

Pitot Output

Pressure Function

Range:

0 to 30 inHg (differential)

Resolution:

0.001 inHg

Accuracy:

±0.003 inHg

Pt Units:

inHg, mbar, psi, mmHg, kpa, EPR

Qc Units:

inHg, mbar, psi, mmHg, kpa

Pressure Rate

Range:

0 to 30 inHg/min

Resolution:

0.001 inHg/min

Accuracy:

±1% of rate

Units:

pressure-units/min (EPR in inHg/min)

Airspeed Function

Range:

0 to 650 knots

Resolution:

0.1 knots

Accuracy:

± 1.0 knots @ 20 knots
± 0.3 knots @ 50 knots
± 0.2 knots @ 100 knots
± 0.1 knots @ 200 knots
± 0.04 knots @ 500 knots

Units:

knots, Mach, km/hr, mph

Airspeed Rate

Range:

0 to 500 knots/min

Resolution:

0.1 knots/min (0.01 km/hr/sec)

Accuracy:

±2% of rate

Units:

knots/min, km/hr/sec, mph/min

Mach Function

Range:

0.0 to 3.0 Mach

Resolution:

0.001 Mach

Accuracy:

±0.001 above 0.2 Mach

Power Requirement

90-260 VAC, 47-440 Hz, 100 W (200 W with heaters)

Optional Removable Battery: 6 to 8 hours of operation

External Interfaces

WiFi, RS232 Serial ; Encoder optional

Dimensions & weights

Main unit:

22” x 14” x 9” / 34 lbs

Remote unit:

6” x 6” x 1” / 1.8 lb.

Environmental Specs

Operating temp.

0°C to 50°C, –40°C to 50°C (optional)

Storage temp.:

–40°C to 75°C

Humidity:

5 to 100%

Features

WiFi-enabled
RVSM & Automated operation
Simply enter the target set-points for altitude and airspeed and the unit automatically achieves the targets, ramping at the programmed rates. Control at the set-point is stable within ± 1 foot and ± 0.1 knot. This RVSM tester’s low price makes it very affordable
Calibration period
1 year
Programmable limits
User-programmable limits for altitude, airspeed, Mach, VSI and airspeed-rate provide protection to the aircraft.
Negative-airspeed protection
An internal differential-pressure relief valve provides protection against negative airspeed.
Removable Battery (Optional)
The removable battery allows for 6 to 8 hours of continuous operation. Re-charge time is only 8 hours.
Low-temperature operation (optional)
With optional internal heaters, the unit can be operated down to -40°C
“Jog” and “Hold” features
Set-points can be “jogged” up or down in small increments. Ramping to a set-point can be put on “hold” and controlled at the current measured value.
“Ground” feature
Brings Pitot and Static outputs to ambient “ground” pressure after completing a test. Ambient pressure is constantly monitored.
“Profiles” feature
A profile of set-points can be downloaded from a PC, allowing the user to step through the set-points using a single key. Each profile can have up to 50 set-points and 15 profiles can be stored in the unit.
Leak checks
Pitot and Static leak-checks can be performed either independently or simultaneously. Three leak-timers can be programmed to perform timed leaks between 1 to 20 minutes. The display of “instant” leak rates provides immediate feedback to the user.
Pressure & Vacuum source
Built-in diaphragm pumps provide the pressure and vacuum source for the unit.
Remote unit
The Remote unit is the operator interface for the tester. It features a sunlight-readable 5.8” color display, a back-lit keypad and a touch-screen (which can be disabled). All operations are performed from a single screen which displays all pertinent parameters.
Manual Vent Valves
On loss of power, the unit maintains pressure. The unit can be manually vented to “Ground” at a controlled rate using precision metering valves.

Applications

Leak-checks and accuracy-checks on Commercial, Business and Military aircraft
Leak-checks and accuracy-checks on Helicopters and UAVs
Ideal for heavy-maintenance and line-maintenance by commercial airlines
