ZONE-1 HEADLESS SYSTEM MODEL 2190

Zone-1 Headless System to collect MWD data & surface parameters. Multiple interface options.

Target Application: Off-shore Rigs, Remote enviornments, Interface with existing systems

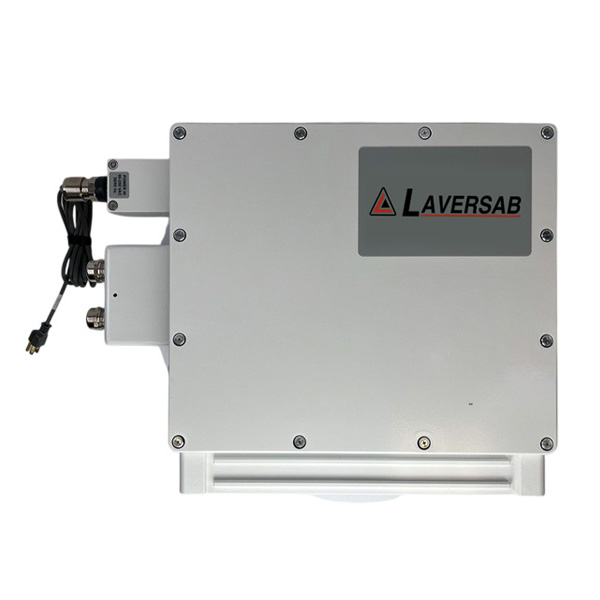

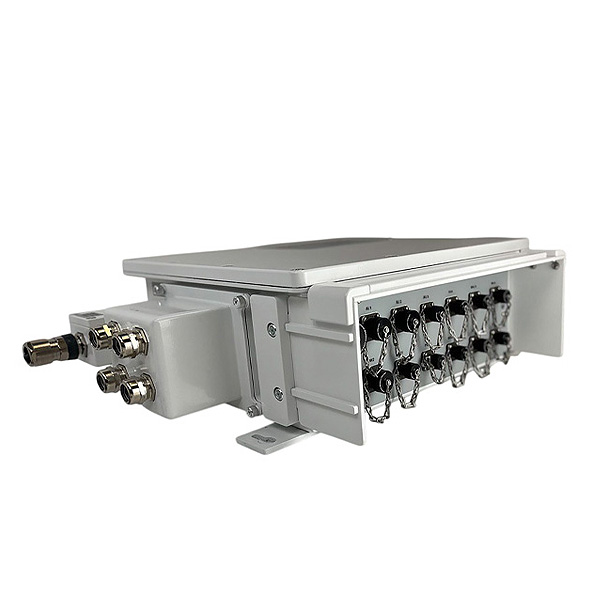

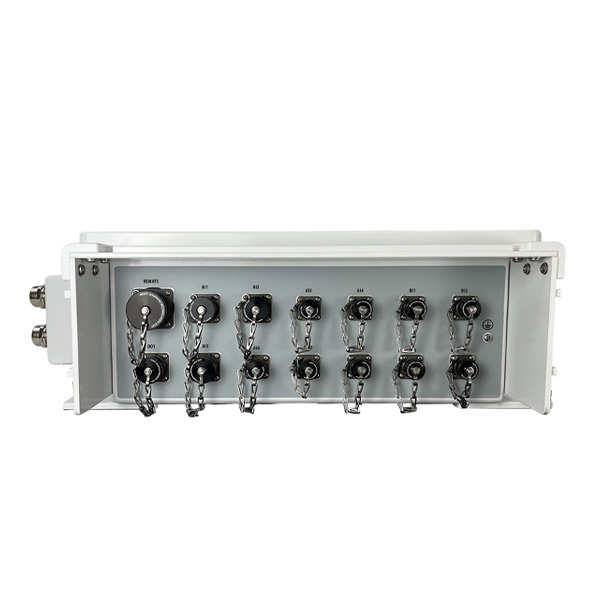

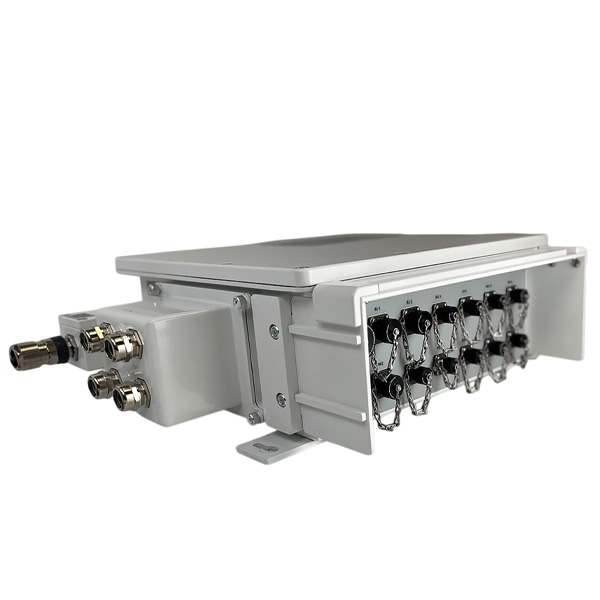

Description: Laversab Model 2190 is a Zone-1 headless system. It is designed to collect data from critical rig systems – including encoder, hookload, pressure transmitters, and pumps. The 2190 can interface with other rig systems and rig infrastructure via fiber optic or ethernet based connectivity. Data can be transmitted over TCP/IP to a central server or repository.

The Model 2190 can be deployed in any region of the world and is best suited to collect data on off-shore rigs.

REQUEST QUOTE
REQUEST SERVICE

Specifications

SYSTEM CONFIGURATION
Form Factor: Customizable
Certifications: Zone 1, Zone 2, or non-certified
I/O: Quantity & Type per requirement
Protocols: Ability to interface with most industrial standards
Software: Built-in or customer specific software
Data storage: Built-in capacity per requirement or cloud enabled
LAN: Multiple Cabled & Wireless interfaces possible
Power: Per user requirements
Test Set Type

Air Data Ramp
Aircraft Type

Business Jet, Commercial, Helicopter, GA, & Non-RVSM
RVSM Capable

Yes
Max Aircraft Altitude

50,000 ft, 60,000 ft
Max Aircraft Airspeed

500 knots, 600 knots, 650 knots, 690 knots
Number of Channels

2
Target Application

Business Jet & Commercial
Range

-2,000 to 60,000 ft
Resolution

1 foot
Accuracy

2 ft. @ 0 ft. 3 ft. @ 10,000 ft. 4 ft. @ 20,000 ft. 6 ft. @ 35,000 ft. 12 ft. @ 50,000 ft.
Rate

0 to 500 knots/min
Remote controller

Standard
Wi-Fi

Standard, Yes
RS-232 interface

Standard
IEEE-488 interface

Not Available
Encoder input

Optional
28 VDC Power

Not Available
Battery

Optional, Yes
Heaters

Optional
Warranty

3 Years
Displayed Static Units

feet, meters, inHg, mbar, psi, mmHg, kg/cm2
Displayed Pitot Units

knots, Mach, kmph, mph, inHg, mbar, psi, mmHg, kg/cm2, EPR
Power Requirement

90-260 VAC, 47-400 Hz, 100 W (200W with Heaters)
Dimensions & Weights

22" x 14" x 9" / 34 lbs.
Calibration Interval

Annual
Operating Temp.

0°C to 50°C
Optional Temp Ranges

-40° C to 50°C
Humidity (non-condensing)

5 to 100%
Altitude capability (ft)

50,000 ft, 60,000 ft
Airspeed capability (knots)

500 knots, 690 knots
Wide Temp capable

Yes
Battery/Wi-Fi capable

Yes
Capability

Battery/Wi-Fi, RVSM Capable, Wide Temp
Range socf

0 to 15,000 ft./min
Accuracy socf

1% of Rate
Resolution socf

1 ft./min
Range poaf

0 to 690 knots
Rate poaf

0 to 500 knots/min
Resolution poaf

0.1 knot
Accuracy poaf

0.04 knots @ 500 knots, 0.1 knots @ 200 knots, 0.2 knots @ 100 knots, 0.3 knots @ 50 knots, 1.0 knots @ 20 knots
comparison_order

2
