PLC to WITSMLTMCONVERTOR PLC COLLECTOR

Convert PLC data to WITSMLTM

Target Application: Any Drilling or Production rig

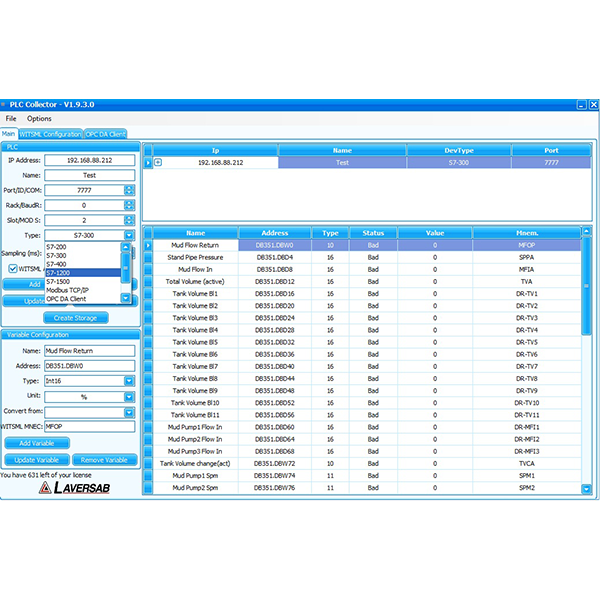

Description: Laversab PLC Collector converts PLC data to WITSMLTMThe PLC Collector enables equipment data to be analyzed together with drilling data. Operators and service companies can uncover insights on how rig equipment performance correlates to drilling performance. They can also monitor equipment to predict and prevent failures.

PLC Collector supports Modbus TCP/IP, OPC, SLC 500 (Rockwell/Allen Bradley), Step 7 (Siemens), and other protocols.

Data across multiple rigs and fields can be compared and analyzed to provide insights into actual rig performance. Custom analysis and reports are available from Laversab.

REQUEST QUOTE
REQUEST SERVICE

Specifications

DATA
Protocols supported: Modbus TCP/IP, Modbus 232/485,
OPC DA, SLC 500 (Rockwell/Allen Bradley),
Step 7 (Siemens)
WITSML™️ versions: 1.3.1 & 1.4.1
Database update: 0.25 sec to 5 sec (user configurable)
Tags: Configurable & can be imported
SYSTEM INFO
Application Type: On-Rig Data Aggregator
Operating System: Windows 7 or later (64-bit)
Framework: .NET
Accessibility: Anytime
Languages: English & Spanish
