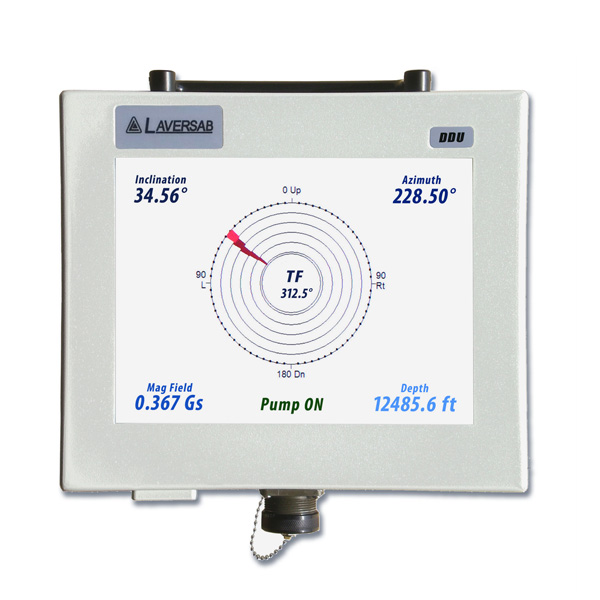

ZONE-1 DRILLER’S DISPLAY UNIT MODEL 3200 – DDU

Zone-1 Drillers Display Unit for Toolface, Inclination, Azimuth information

Target Application: MWD Surface Systems

Description: Laversab Model 3200 is a Zone-1 certified Driller’s Display Unit (DDU). This ultra-compact unit is fully sealed and ready to be used on the rig. It typically pairs with a Decoder that resides in the safe area.
The Model 3200 displays critical MWD telemetry information including ToolFace, Inclination, Azimuth and more; the 3200 can also be customized to display WITS0 data. The ATEX/IECEx Zone 1 certifications make this unit suitable for both Offshore and Land deployment.

REQUEST QUOTE
REQUEST SERVICE

Specifications

System Configuration
Core Functions
Product Type: Display Unit
Certifications: ATEX Zone-1, lib loations
Display: 10.4" transflexive LCD
Brightness: Sunlight readable with LED backlight
Processor: ARM 9 Core Processor
Operating System: Linux Embedded or Windows CE
Data Storage: 64 MB Flash
Memory: 64 MB SDRAM
Input / Output
USB ports: 1x Protected [Ex ic]
Serial ports: RS 232; RS 485 available
LAN: 1 channel available
Current Loop: 1 channel available
APPLICATION SOFTWARE
Laversab Software: Pre-loaded Directional Drilling SW
ENVIRONMENTAL
Operating temp: -20°C to +50°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%
PHYSICAL
Power: 3-25VDC, 5W max
Sealing: NEMA-4 on all six sides
Weight: 11 lbs

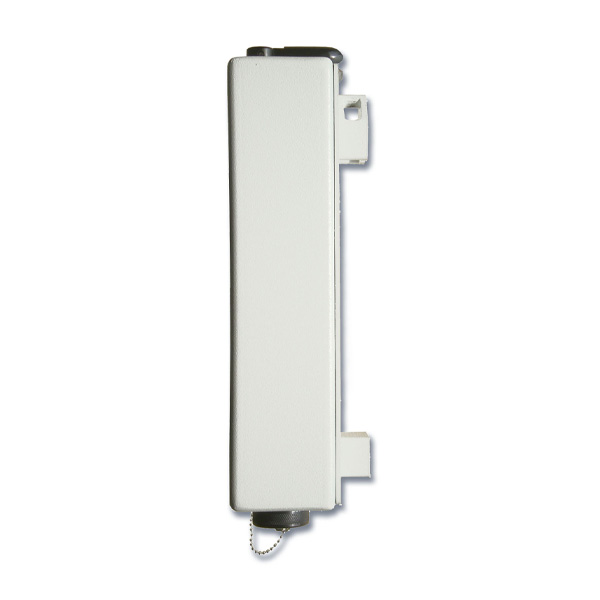

Dimensions: 10.75”(w) 9.25”(h) 2.25”(d)

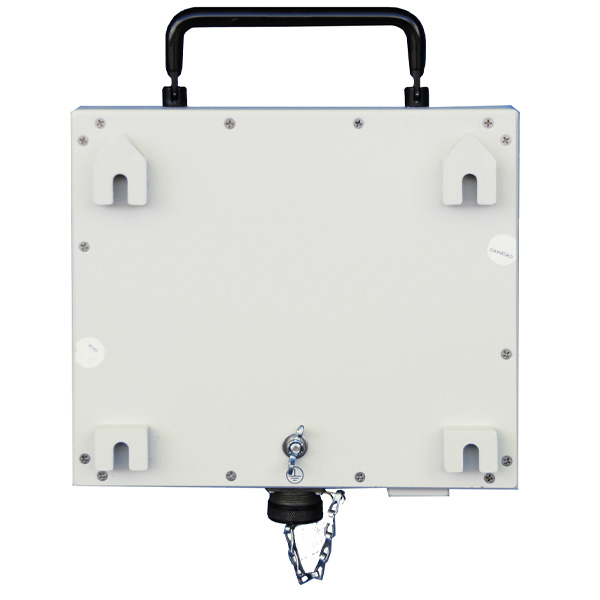

Mounting: Hanger mount
Pole mount
