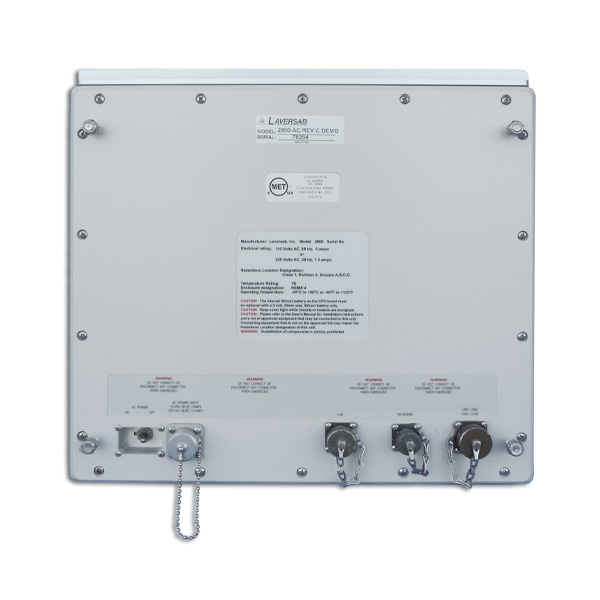

<span class="title-dark hide-on-catalog">HazLoc Computer</span><span > Model 2800 (Legacy)</span> - Image 2

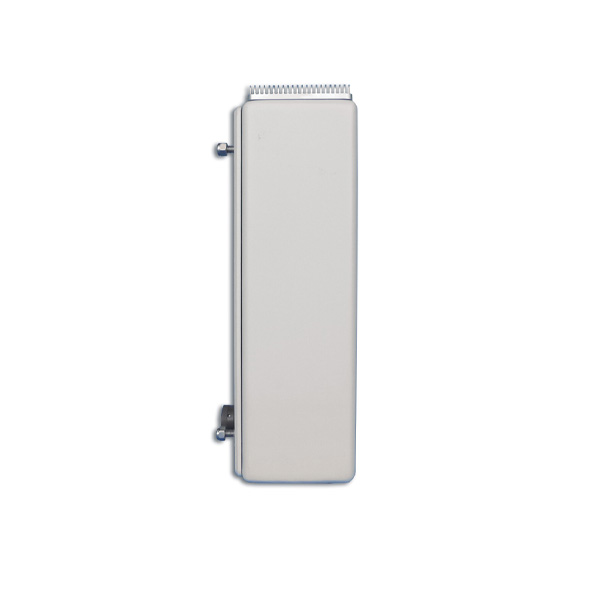

<span class="title-dark hide-on-catalog">HazLoc Computer</span><span > Model 2800 (Legacy)</span> - Image 3

HazLoc Computer Model 2800 (Legacy)

RVSM pitot-static tester for all aircraft types (2-channel)

Description: Laversab Model 2800 is a Class 1 Division 2 certified HazLoc workstation designed for legacy systems. This unit includes a 15” touchscreen and options for a 2.4GHz or 900MHz wireless radio.
Customer-specific software can be installed before or after delivery. However, Laversab recommends the Models 2804 / 2852 / 2860 for new requirements.

REQUEST SERVICE

Specifications

SYSTEM CONFIGURATION

Product Type:
PC Workstation
Certifications:
ATEX / IECEx Zone-2
Display:
  • 2804: 10.4”
  • 2852: 15”
  • 2860: 19”
  • All models include scratch resistant touch-screen with polarizer
Brightness:
1300 nits; Sunlight readable with adjustable brightness
Processor:
  • Intel® Atom 1.91 GHz Quad-Core
  • Intel® Core i7 2.6 GHz Quad-core
Operating System:
Windows 10 or other
Data storage:
128 GB to 512 GB SSD
Memory:
8 GB to 32 GB DRAM
Wireless LAN:
900MHz, 2.4GHz, or other options
I/O:
2x USB, 2x RS-232/422/485, LAN, user defined options

APPLICATION SOFTWARE

User Configurable:
Pre-loaded or installed via USB or network

ENVIRONMENTAL PERFORMANCE

Operating temp:
-40°C to +60°C
Storage temp:
-40°C to +75°C
Humidity:
5 to 100%

PHYSICAL CHARACTERISTICS

Power:
90-260 VAC, 47-63 Hz, 150 VA
Sealing:
IP66 on all six sides
Weight:
  • 2804: 9 lbs
  • 2852: 15 lbs
  • 2860: 22 lbs
Dimensions:
  • 2804: 11.4”(w) 9.4”(h) 4.0”(d)
  • 2852: 15.2”(w) 12.3”(h) 4.0”(d)
  • 2860: 18.4”(w) 15.4”(h) 4.0”(d)
Mounting:
Hanger & Panel mount; VESA-75/100
Test Set Type

Air Data Ramp
Aircraft Type

Business Jet, Commercial, Helicopter, GA, & Non-RVSM
RVSM Capable

Yes
Max Aircraft Altitude

50,000 ft, 60,000 ft
Max Aircraft Airspeed

500 knots, 600 knots, 650 knots, 690 knots
Number of Channels

2
Target Application

Business Jet & Commercial
Range

-2,000 to 60,000 ft
Resolution

1 foot
Accuracy

2 ft. @ 0 ft. 3 ft. @ 10,000 ft. 4 ft. @ 20,000 ft. 6 ft. @ 35,000 ft. 12 ft. @ 50,000 ft.
Rate

0 to 500 knots/min
Remote controller

Standard
Wi-Fi

Standard, Yes
RS-232 interface

Standard
IEEE-488 interface

Not Available
Encoder input

Optional
28 VDC Power

Not Available
Battery

Optional, Yes
Heaters

Optional
Warranty

3 Years
Displayed Static Units

feet, meters, inHg, mbar, psi, mmHg, kg/cm2
Displayed Pitot Units

knots, Mach, kmph, mph, inHg, mbar, psi, mmHg, kg/cm2, EPR
Power Requirement

90-260 VAC, 47-400 Hz, 100 W (200W with Heaters)
Dimensions & Weights

22" x 14" x 9" / 34 lbs.
Calibration Interval

Annual
Operating Temp.

0°C to 50°C
Optional Temp Ranges

-40° C to 50°C
Humidity (non-condensing)

5 to 100%
Altitude capability (ft)

50,000 ft, 60,000 ft
Airspeed capability (knots)

500 knots, 690 knots
Wide Temp capable

Yes
Battery/Wi-Fi capable

Yes
Capability

Battery/Wi-Fi, RVSM Capable, Wide Temp
Range socf

0 to 15,000 ft./min
Accuracy socf

1% of Rate
Resolution socf

1 ft./min
Range poaf

0 to 690 knots
Rate poaf

0 to 500 knots/min
Resolution poaf

0.1 knot
Accuracy poaf

0.04 knots @ 500 knots, 0.1 knots @ 200 knots, 0.2 knots @ 100 knots, 0.3 knots @ 50 knots, 1.0 knots @ 20 knots
comparison_order

2
