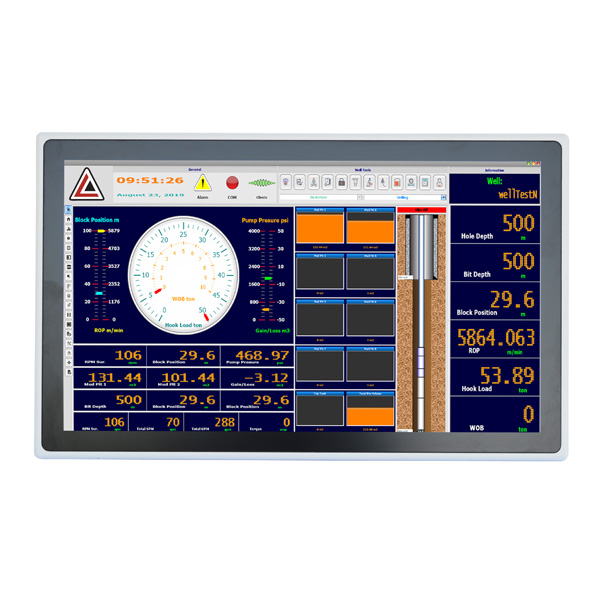

<span class="title-dark hide-on-catalog">ZONE-2 RIG FLOOR DISPLAY</span><span> MODEL 2874 - 21.5" WS</span>

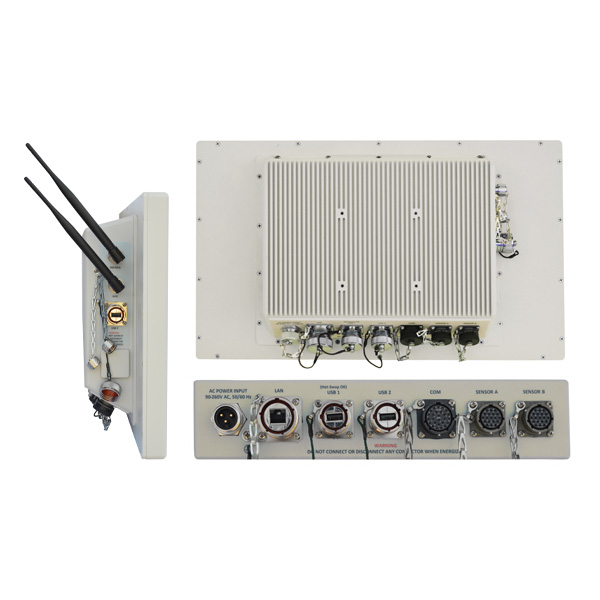

<span class="title-dark hide-on-catalog">ZONE-2 RIG FLOOR DISPLAY</span><span> MODEL 2874 - 21.5" WS</span> - Image 2

ZONE-2 RIG FLOOR DISPLAY MODEL 2874 – 21.5″ WS

Zone-2 RFD with 21.5″ wide-screen display & rich I/O options

Target Application: MWD Surface Systems, Rig Floor Displays, HazLoc Computers, Truck-mounted HMI

Description: The Model 2874 is a Zone-2 workstation ideal for applications on the oil rig, in vehicles, or in safety-critical environments. This RFD features a 21.5″ Widescreen display (16:9 aspect ratio) with standard I/O ports to interface easily with other systems. The unit is configurable – certification-level, performance, optional digitizer, and optional depth tracker. The Model 2874 is designed to interface with sensors and communicate with other systems.

MWD manufacturers have largely standardized on Laversab Zone-2 RFDs.

REQUEST QUOTEREQUEST SERVICE

Specifications

System Configuration
Core Functions
Product Type: PC Workstation
Certifications: ATEX / IECEx Zone-2
Embedded Capabilities: DAQ/Digitizer for MWD
Depth Tracker
Display:21.5" capacitive-touch
Resolution:1920 x 1080
Brightness: 1000 nits; adjustable
Configurable Functions
Processor: Intel® Core i5 @ 1.6 / 4.1* GHz Quad-core
Intel® Core i7 @ 1.7 / 4.4* GHz Quad-core
(* Achievable in Turbo mode)
Operating System:Windows 10 Professional
Certifications: ATEX / IECEx Zone-2
Data Storage: 256 GB to 2 TB SSD
Memory: 16 GB to 64 GB
Wireless Radio: Wi-Fi, 900 MHz, 900 MHz Turbo, 2.4 GHz, 2.4 GHz MIMO
Input / Output
# Pressure Inputs: Up to 2
Pressure Connectors: 19-pin, 6-pin, or 3-pin
USB ports: 1x Protected [Ex ic], 2x High-speed
2x Protected [Ex ic], 1x High-speed
Serial ports: RS 232; RS 485 available
LAN: 1x Gbit PoE (Power over Ethernet)
Application Software
Laversab Software: LINKS DT (Depth Tracker)
Digitizer API
User software: User MWD software (or other)
can be pre-loaded or installed
Environmental
Operating temp: -40°C to +60°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%
Physical
Power: 90-260 VAC, 47-63 Hz, 150 VA
Sealing: IP66 on all six sides
Weight: 25 lbs
Dimensions: 21”(w) 12.75”(h) 3.77”(d)
Operating Shock: 50 G, 11 ms half-sine
Operating Vibration: 3.0 G, RMS, 5 to 500 Hz
Mounting: Hanger or Panel mount
VESA-100
Desktop stand
