ZONE-2 RIG FLOOR DISPLAY MODEL 2854 – 15″

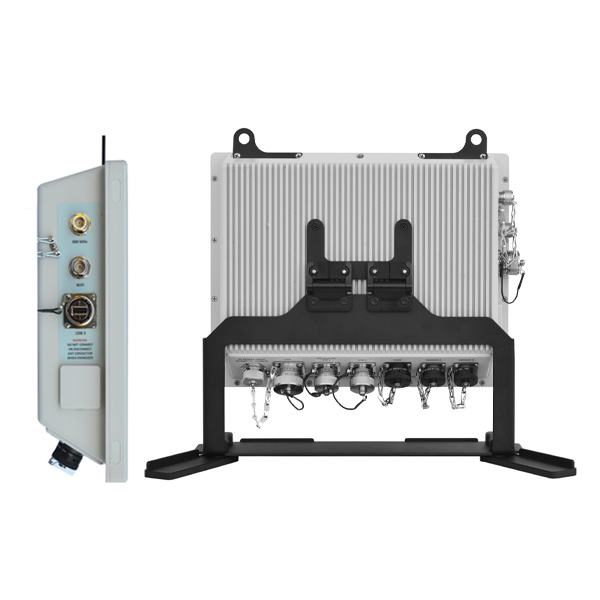

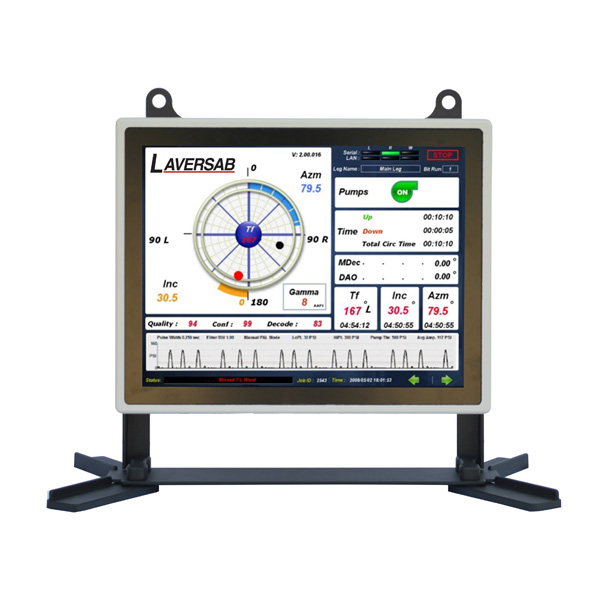

Zone-2 RFD with 15″ display & rich I/O options

Target Application: MWD Surface Systems, Rig Floor Displays, HazLoc Computers, Truck-mounted HMI

Description: The Model 2854 is a Zone-2 workstation ideal for applications on the oil rig, in vehicles, or in safety-critical environments. This 15″ RFD features standard I/O ports to interface easily with other systems. The unit is configurable – certification-level, performance, optional digitizer, and optional depth tracker. The Model 2854 is designed to interface with sensors and communicate with other systems.

MWD manufacturers have largely standardized on Laversab Zone-2 RFDs.

REQUEST QUOTE
REQUEST SERVICE

Specifications

System Configuration
Core Functions
Product Type: PC Workstation
Certifications: ATEX / IECEx Zone-2
Embedded Capabilities: DAQ/Digitizer for MWD
Depth Tracker
Display: 15" capacitive-touch
Resolution: 1024 × 768
Brightness: 1000 nits; adjustable
Configurable Functions
Processor: Intel® Core i5 @ 1.6 / 4.1* GHz Quad-core
Intel® Core i7 @ 1.7 / 4.4* GHz Quad-core
(* Achievable in Turbo mode)
Certifications: ATEX / IECEx Zone-2
Operating System: Windows 10 Professional
Data Storage: 256 GB to 2 TB SSD
Memory: 16 GB to 64 GB
Wireless Radio: Wi-Fi, 900 MHz, 900 MHz Turbo, 2.4 GHz, 2.4 GHz MIMO
Input / Output
# Pressure Inputs: Up to 2
Pressure Connectors: 19-pin, 6-pin, or 3-pin
USB ports: 1x Protected [Ex ic], 2x High-speed
2x Protected [Ex ic], 1x High-speed
Serial ports: RS 232; RS 485 available
LAN: 1x Gbit PoE (Power over Ethernet)
Application Software
Laversab Software: LINKS DT (Depth Tracker)
Digitizer API
User software: User MWD software (or other)
can be pre-loaded or installed
Environmental
Operating temp: -40°C to +60°C
Storage temp: -40°C to +75°C
Humidity: 5 to 100%
Physical
Power: 90-260 VAC, 47-63 Hz, 150 VA
Sealing: IP66 on all six sides
Weight: 16 lbs
Dimensions: 14”(w) 11”(h) 3.3”(d)
Operating Shock: 50 G, 11 ms half-sine
Operating Vibration: 3.0 G, RMS, 5 to 500 Hz
Mounting: Hanger or Panel mount
VESA-100
Desktop stand

BUILD YOUR SYSTEM



Test Set Type

Air Data Ramp
Aircraft Type

Business Jet, Commercial, Helicopter, GA, & Non-RVSM
RVSM Capable

Yes
Max Aircraft Altitude

50,000 ft, 60,000 ft
Max Aircraft Airspeed

500 knots, 600 knots, 650 knots, 690 knots
Number of Channels

2
Target Application

Business Jet & Commercial
Range

-2,000 to 60,000 ft
Resolution

1 foot
Accuracy

2 ft. @ 0 ft. 3 ft. @ 10,000 ft. 4 ft. @ 20,000 ft. 6 ft. @ 35,000 ft. 12 ft. @ 50,000 ft.
Rate

0 to 500 knots/min
Remote controller

Standard
Wi-Fi

Standard, Yes
RS-232 interface

Standard
IEEE-488 interface

Not Available
Encoder input

Optional
28 VDC Power

Not Available
Battery

Optional, Yes
Heaters

Optional
Warranty

3 Years
Displayed Static Units

feet, meters, inHg, mbar, psi, mmHg, kg/cm2
Displayed Pitot Units

knots, Mach, kmph, mph, inHg, mbar, psi, mmHg, kg/cm2, EPR
Power Requirement

90-260 VAC, 47-400 Hz, 100 W (200W with Heaters)
Dimensions & Weights

22" x 14" x 9" / 34 lbs.
Calibration Interval

Annual
Operating Temp.

0°C to 50°C
Optional Temp Ranges

-40° C to 50°C
Humidity (non-condensing)

5 to 100%
Altitude capability (ft)

50,000 ft, 60,000 ft
Airspeed capability (knots)

500 knots, 690 knots
Wide Temp capable

Yes
Battery/Wi-Fi capable

Yes
Capability

Battery/Wi-Fi, RVSM Capable, Wide Temp
Range socf

0 to 15,000 ft./min
Accuracy socf

1% of Rate
Resolution socf

1 ft./min
Range poaf

0 to 690 knots
Rate poaf

0 to 500 knots/min
Resolution poaf

0.1 knot
Accuracy poaf

0.04 knots @ 500 knots, 0.1 knots @ 200 knots, 0.2 knots @ 100 knots, 0.3 knots @ 50 knots, 1.0 knots @ 20 knots
comparison_order

2
